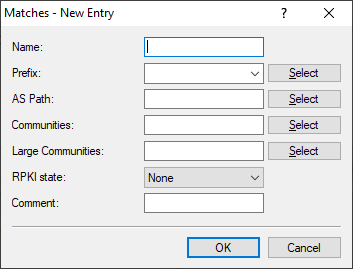

Matches

This table combines lists of prefixes and attributes in order to compare multiple list entries for matches with the NLRI.





Name
Contains the name of this entry.
Prefix
Contains the corresponding item in the list under Prefix.
AS-Path
Contains the corresponding item in the list under AS path in the section "Prefix and attribute lists".
Communities
Contains the corresponding item in the list under Communities in the section "Prefix and attribute lists".
Large Communities
Contains the corresponding item in the list under Large Communities in the section "Prefix and attribute lists".
RPKI state
The Resource Public Key Infrastructure (RPKI) status of prefixes can be used in a BGP policy, so rules can apply it to a BGP prefix. The rejection of invalid prefixes is not recommended; instead, they should be given a lower preference. In this case, a BGP rule is defined that matches to the RPKI status "Invalid". The action sets the preference of this prefix to the value 10, for example. Once a prefix has been rejected, it is not saved and is no longer available unless the prefix is retransmitted and reevaluated by the BGP neighbor.
None
The RPKI state is not processed.
Not found
The entry matches if the PRKI state of the prefix is set to "Not-found".
Invalid
The entry matches if the PRKI state of the prefix is set to "Invalid".
Valid
The entry matches if the PRKI state of the prefix is set to "Valid".
Comment
Comment on this entry.
