IPv4 networks

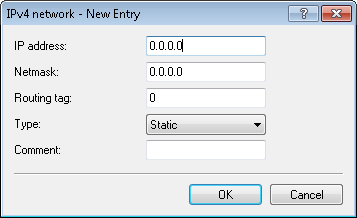

Use this table to configure the IPv4 networks that the device shares with the BGP neighbors.

Whether these networks are distributed depends upon the restrictions under Routing protocols > BGP > IPv4 address family.

Note: The minimum specification for a valid new entry is one IP address.




IP address
Contains the IPv4 address or the prefix of the network.
Netmask
Includes the IPv4 netmask of the network.
Note: The route is the default route for this address family if this entry contains the default setting 0.0.0.0.
Routing tag
Contains the routing tag for this network. The table under Routing protocols > BGP > IPv4 address family uses this entry to filter the communication with BGP neighbors.
Type
This item specifies whether the device always advertises this network, or only when the network appears in the active routing table.
  • In the "Static" setting the network is always selected for advertisement.
  • In the "Dynamic" setting, the network is only selected for advertisement if it appears in the active routing table.
Comment
Comment on this entry.
