The network table

The network table defines the virtual LANs that the device belongs to.

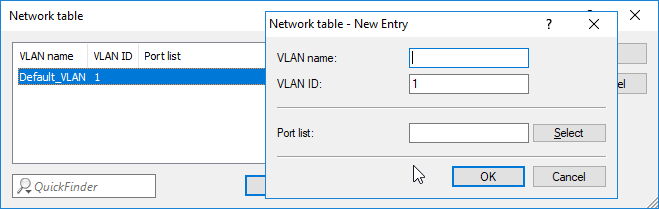

LANconfig: Interfaces > VLAN > VLAN table

Command line: Setup > VLAN > Networks

VLAN name
The name of the VLAN only serves as a description for the configuration. This name is not used anywhere else.
VLAN ID
This number uniquely identifies the VLAN.
Port table
This table is used to enter the interfaces for this device that belong to the VLAN. For a device with a LAN interface and a WLAN port, ports that to be entered could include "LAN-1" and "WLAN-1". Port ranges are defined by entering a tilde between the individual ports: "P2P-1~P2P-4".
