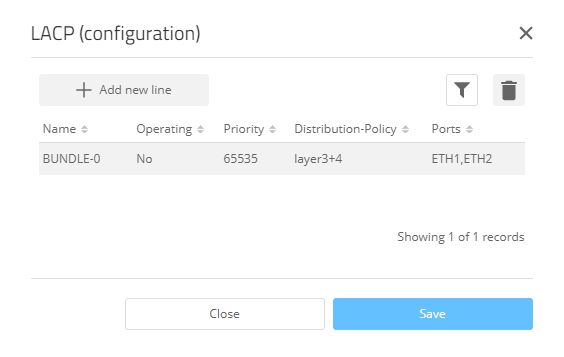

The LACP menu is used to configure the Link Aggregation Control Protocol.





Name
This is the logical interface used to bundle the selected physical interfaces.
Operating
Using this parameter, you enable or disable interface bundling. With bundling enabled, the device groups the selected device interfaces together into one common logical bundled interface. In the disabled state the interfaces that are selected in the corresponding table still operate as individual interfaces.
Priority
Enter the LACP system priority. The default value is 65,535.
Distribution-Policy
There are a number of options for distributing the network packets to the various bundled interfaces. The following characteristics are used for distribution:
layer2
MAC addresses
layer2+3
A combination of MAC addresses and IP addresses
layer3+4
IP addresses and TCP/UDP ports
encap2+3
Like layer2+3. However, in the case of encapsulated protocols, an attempt is made to obtain this information from the inner protocol
encap3+4
Like layer3+4. However, in the case of encapsulated protocols, an attempt is made to obtain this information from the inner protocol
Ports
Use this parameter to select the physical interfaces as a comma-separated list that the device bundles via LACP. Default: ETH1,ETH2
