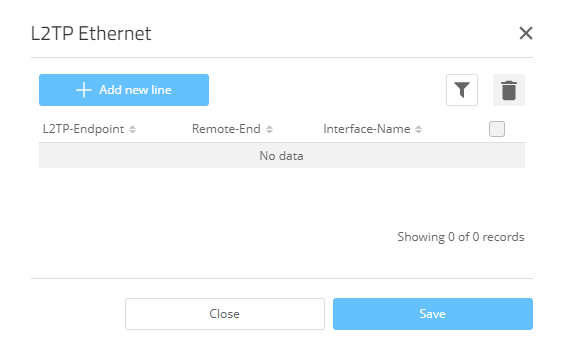

L2TP Ethernet

The item L2TP Ethernet is used to configure the L2TPv3 tunnel between a WLAN network and an L2TP endpoint.





L2TP Endpoint
Here you configure the name of the L2TP endpoint configured in the L2TP endpoints table. This causes an Ethernet tunnel session to be established via this endpoint.
Remote-End
Here you configure the name used to assign the Ethernet tunnel to the remote site. For each Ethernet tunnel, this name must be identical at both ends.
Interface-Name
The virtual L2TP Ethernet interface to be used for the L2TPv3 session.
MTU
This setting adjusts the MTU of an L2TP Ethernet tunnel to the specified value, e.g. when connecting the tunnel across networks with smaller MTUs. Possible values: 68-1500
