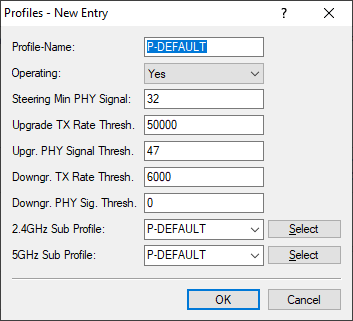

Profiles

Adjust the detailed settings of the steering profiles or create a new profile under Wireless LAN > Client Management > Profiles.

Note: LANCOM recommends using the preset profiles.




Profile name
Give this profile a name.
Operation
Controls whether band steering is active for this profile.
Steering min. PHY signal
Specifies the client signal strength (in dB) below which client steering is initiated.
Upgrade TX rate threshold
Specifies the limit value of the transmission rate (in kbps), at which the client should potentially be steered to the 5-GHz band.
Upgrade PHY signal threshold
Specifies the client signal strength (in dB) required as a minimum before the client is considered for steering to the 5-GHz band.
Downgrade TX rate threshold
Specifies the limit value of the transmission rate (in kbps), at which the client should potentially be steered to the 2.4-GHz band.
Downgrade PHY signal threshold
Specifies the client signal strength (in dB) that must be exceeded before the client is considered for steering to the 2.4-GHz band. For steering to 2.4 GHz (downgrade), the signal strength has to fall below the value configured here and also below the Downgrade TX rate threshold value.
2.4-GHz sub-profile
Here you configure which 2.4-GHz sub-profile is used.
5-GHz sub-profile
Here you configure which 5-GHz sub-profile is used.
