HTTP-Server

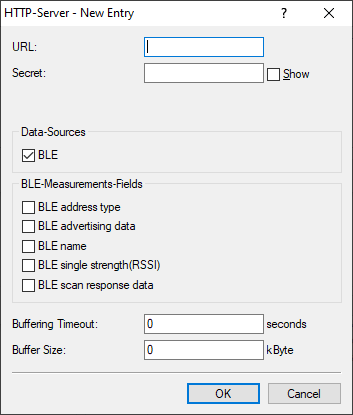

Under HTTP-Server you configure the HTTP endpoints for the LBS data.

URL: Configure the URL of the HTTP endpoint here.
Note: HTTP and HTTPS are supported. If you use HTTPS, a CA certificate for server verification must also be uploaded to the device. This can be done using WEBconfig. See Location based services.
Secret: The secret (key) is transmitted from the access point to the end point in the JSON messages and can additionally be used for message authentication.
Data-Sources: Here you configure the types of LBS data that should be sent. Only BLE is currently available.
BLE-Measurements-Fields: Here you configure which measurement fields or data from the access point should be included in the messages to the HTTP endpoint. In order to minimize the data volume, we recommend that you limit this to essential data only.
Buffering Timeout: After the configured time (in seconds) is reached, all BLE messages buffered up to that point are sent to the server.
Buffer Size: After the configured data quantity (in bytes) is reached, all BLE messages buffered up to that point are sent to the server.
Note: With the value for Buffering Timeout and Buffer Size both set to 0, the messages are sent to the server as soon as possible.

Data format of the messages sent to the endpoint

For BLE:
```
{
    "deviceMac": "00A0574C49EB",
    "measurements": [
        {
            "addressType": "Random",
            "deviceAddress": "70CE7B7014EC",
            "name": "",
            "rssi": -93,
            "seenTime": 1599208076493
        },
        {
            "addressType": "Random",
            "deviceAddress": "70CE7B7014EC",
            "name": "",
            "rssi": -93,
            "seenTime": 1599208076494
            "advertisingData": "1eff0600010920024bab81ba8815c5dc61c38449a886740a1ddb09b9e2ad8e",
            "scanResponseData": "050974657374"
        }
    ],
    "secret": "",
    "type": "BLE",
    "version": "1.0"
}
```
version

The version of the API being used. Currently this is always 1.0.

secret

The HTTP server secret specified in the access point configuration.

type

The type of data sent. Can be either WLAN or BLE.

deviceMac

The LAN MAC address of the access point.

measurements

This contains at least one measured value. This could also be a number of measurements.

deviceAddress

The address of the BLE device or client.

seenTime

The time stamp (in Unix time) when the BLE frame from the client was received by the access point.

addressType

The type of BLE address. The following address types are available: Public or Random.

rssi

The signal strength in dBm of the received BLE frame.

name

The name submitted by the BLE device. Only transmitted if the BLE scanner is activated in the BLE operational settings.

advertisingData

The complete advertisement transmitted by the BLE device.

scanResponseData

The complete scan response transmitted by the BLE device. Only transmitted if the BLE scanner is activated in the BLE operational settings.
