The information area (4) is located on the right-hand side of the desktop.

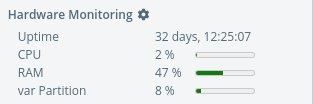

After logging in, the information panel is visible and displays basic firewall information.
- Uptime: elapsed time since the firewall was started
- CPU: average utilization of all CPUs in percent
- RAM: occupancy of the main memory in percent
- var Partition: The occupancy of this partition is used here because data for logs or statistics are stored on this partition, among other things.
Select a desktop object to display its details in information panel, e.g.:
- Description
- Tags
- IP addresses
- Group members
- Current VPN connections
The amount and type of information displayed differs for the different types of desktop objects (hosts, Internet objects, users, etc.). Dynamic information (e.g. the status of a VPN connection) is updated automatically.
You can click on entries with to open a corresponding settings dialog.
Click on to minimize the information panel. Click on the info icon to show the information panel again.
