ESL- and iBeacon profiles

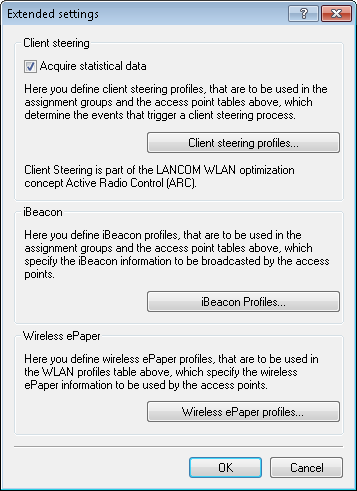

In order to use a WLC to manage the settings of the Wireless ePaper information and iBeacon information of the individual APs, you create the corresponding profiles for Wireless ePaper and iBeacon via WLAN-Controller > AP-Configuration with the button Extended settings.

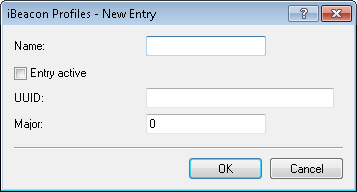

The button iBeacon profiles is used to create iBeacon profiles for the assignment groups and the AP table, which specify the iBeacon information to be broadcast by the individual APs.





Name
Name of the profile
Entry active
Activates or deactivates this profile.
UUID
Unique identification of the transmitter
Major
Specifies the Major value of the iBeacon.

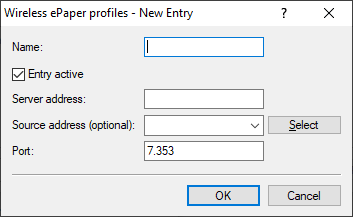

The button Wireless ePaper profiles is used to create Wireless ePaper profiles for the WLAN-profiles table, which specify the Wireless ePaper information to be broadcast by the individual APs.





Name
Name of the profile
Entry active
Activates or deactivates this profile.
Server address
IP address of the Wireless ePaper Server.
Source address (optional)
Enter loopback address here.
Port
Specifies the port.
