AP-specific login to a central Public Spot

A central WLC manages a Public Spot in a distributed infrastructure. Accordingly, the configuration of the Public Spot (Public Spot SSID, security standards) is identical on all of the participating APs. This allows a Public Spot provider to offer an identical Public Spot at all of the different locations.

After receiving a voucher, customers would have access to this Public Spot at any branch. In order to limit access to the branch where the customer has received the voucher, the AP transmits its own identifier in addition to the user name and password. This identifier enables the voucher to be associated with this AP. To transfer the identifier, the AP attaches the circuit ID (DHCP option 82) to the DHCP requests. These DHCP packets pass through the central Public Spot, which checks the identifier based on the entries in the RADIUS user table.

The Public Spot only allows a request if the voucher in the RADIUS user table is associated with this AP. Customers who have received a voucher at branch A cannot login to the same Public Spot at branch B, since the two APs transmit different identifiers.

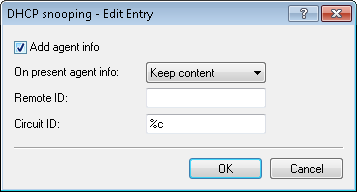

The AP identifier is configured as the circuit ID for the corresponding interface under Interfaces > Snooping > DHCP snooping.





You can use the following variables:

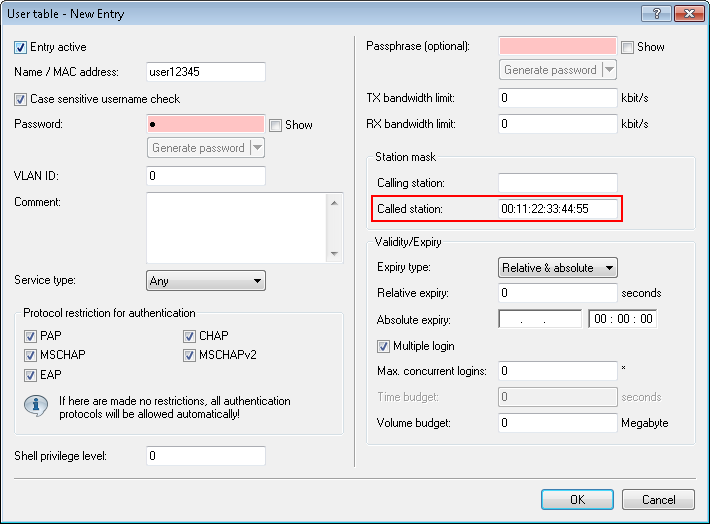

On the WLC, you configure this identifier in the RADIUS user table under RADIUS > Server > General > User table.





As the "Called station", you add the ID of the AP that should enable access by means of the corresponding voucher.

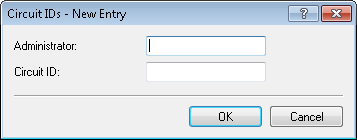

When setting up new Public Spot users, the Public Spot Setup Wizard automatically uses the ID of the device if this is configured under Public Spot > Wizard > Circuit IDs.





When you create a new Public Spot account, the setup wizard checks to see whether this table contains an entry for the logged-in administrator. If this is the case, the setup wizard inserts the circuit ID into the RADIUS user table as the "called station".
