Configuration

You can set the time period over which the displayed CPU load is to be averaged as required.

Command line: Setup > Config

CPU-Load-Interval

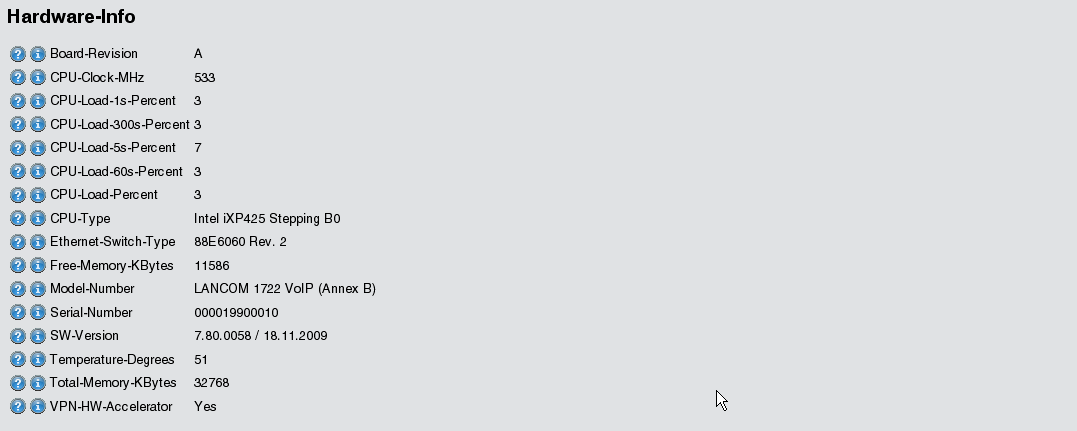

Here you can select the time period for averaging the CPU load display. The display of CPU load in LANmonitor, status area, display (if available) as well as in any SNMP tools used is based on the averaging time frame. In the status area under WEBconfig or CLI, the CPU load values for all four possible averaging time frames are displayed. Possible values:
  • 1, 5, 60 or 300 seconds.
Default:
  • 60 seconds.
Important: The default averaging over 60 seconds is prescribed in the HOST-RESOURCES-MIB, which is used by common SNMP tools to display the CPU load in a tachometer display. Please note this when adjusting the CPU load interval.
