Direct channel bundling via PPTP

The following method is for the configuration of channel bundling via PPPoE:

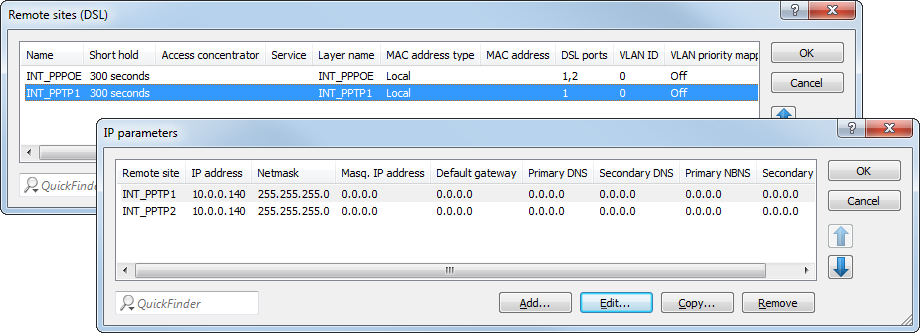

  1. Configure several separate PPTP connections (e.g. using the LANconfig Wizard), each using a different DSL port. The connections are entered with the same values for the IP parameters as those that can be seen in LANconfig under Communication > Protocols > IP parameters. Console: Setup > WAN > IP-List

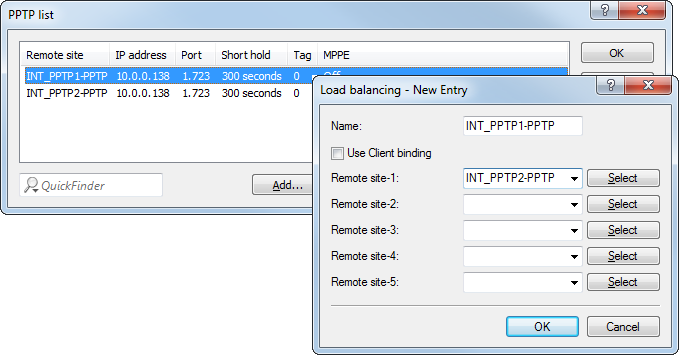

  2. Bundling takes place if additional remote sites are defined in the load balancing list for the physical connection to the PPTP remote site. The PPTP connection then requests the next physical connection from the load balancer and establishes it there. Enter the bundled connections in LANconfig under IP router > Routing > Load balancing. Console: Setup > IP-Router > Load-Balancer
