OSPF areas

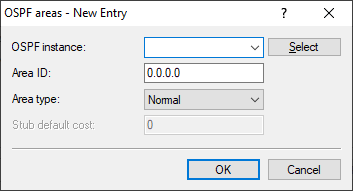

The parameters for the OSPF area are configured under OSPF areas ....

OSPF instance
Contains the name of the OSPF instance.
Area ID
The area ID (displayed as an IPv4 address) identifies the area.
Note: If this instance is to be the backbone area, the value to be used is 0.0.0.0.
Area type
Specifies the type of the area.Possible values:
Normal (default)
Stub
Stub default cost
If the area is configured as a stub area and the router itself is an area border router, the parameter Stub default cost indicates the cost of the default summary LSA that this router should advertise in this area.
