Connecting a local interface to an EoGRE tunnel involves the following steps:
-
Create a new entry under .

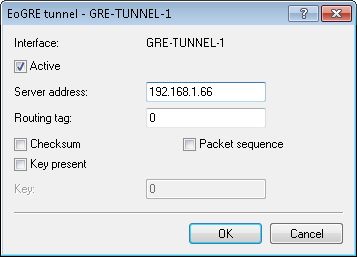

Activate the tunnel and, under Server address, enter the address of the remote device to which the EoGRE tunnel is to connect (IPv4 address, IPv6 address, or FQDN).
-
Add a bridge group for the activated EoGRE tunnel under .

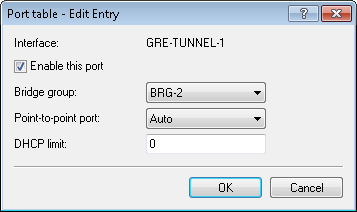

Enable the port and select the required bridge group.
-

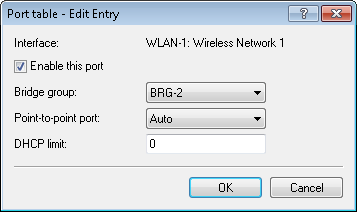

Again under , supplement the same bridge group with the local interface that you want to connect through the EoGRE tunnel (e.g. WLAN-1).
Enable the port and select from the list the bridge group that contains the EoGRE tunnel.
