To analyze the captured packets with the packet analysis tool "Wireshark", proceed as follows:
-
After starting the program, select Capture Options. In the window that appears, click on the button Manage Interfaces.
-

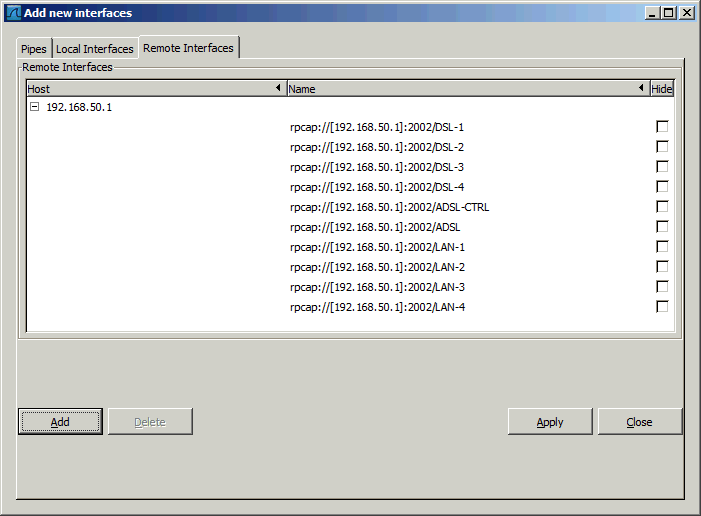

In the following window, select the tab Remote Interfaces and add your router. The field Username can be left blank. Set the password as the main device password for the router.
-
A list of all of the interfaces on the router available for data capture is displayed. Confirm the dialog by clicking on Apply and Close.
-
In the Capture Options, select which of the interfaces are to be captured. Now click on the Start button.
The packets passing through the selected interfaces are now captured.
