The clients that can communicate with the server are entered into this table. Use the corresponding table depending on the network protocol.

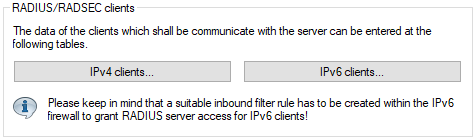

The RADIUS / RADSEC clients are configured via under IPv4 clients and IPv6 clients.

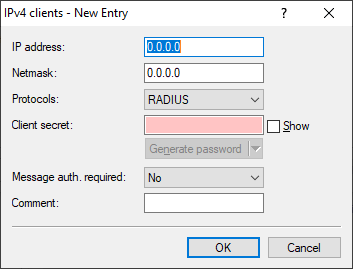

IPv4 clients
The following values are entered for each client:
- IP address
- IP address (or address range) of the clients for which the password entered in this dialog applies.
- Netmask
- IP netmask of the clients
- Protocols
- Protocol for communication between the internal server and the clients.
- Client secret
- Password required by the clients for access to the internal server.
- Comment
- Comment on this entry.

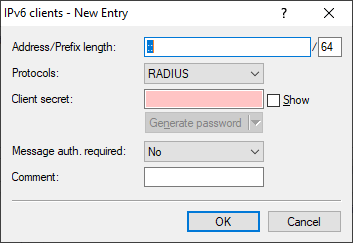

IPv6 clients
The following values are entered for each client:
- Address / prefix length
-
IP address (or address range) of the clients for which the password entered in this dialog applies.
Important: To use an address, the prefix length must be 128 bits. The entry "fd00::/64", for example, permits access to the entire network, the entry "fd00::1/128" permits exactly one client only.
- Protocols
- Protocol for communication between the internal server and the clients.
- Client secret
- Password required by the clients for access to the internal server.
- Comment
- Comment on this entry.
Note: In order for IPv6 clients to access the RADIUS server, a corresponding inbound rule must be entered in the IPv6 firewall, if necessary.
