IPv4 RP list

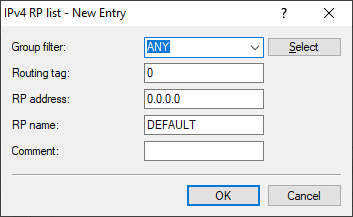

In LANconfig you configure the IPv4 RP list under Multicast > PIM > IPv4 using IPv4 RP list. In this table, the IPv4 rendezvous points (RPs) and their associated multicast groups are configured for PIM sparse mode.





Group filter
Specifies the multicast groups for which the rendezvous points should be responsible. Addresses that match the group filter are managed by this rendezvous point. References a filter list from the table Multicast > General > IPv4 filter lists.
Routing tag
The routing tag used to reach this rendezvous point.
RP address
IPv4 address of the external rendezvous point. The device itself does not support the role of a rendezvous point.
RP name
Name of the rendezvous point.
Comment
Optionally enter a meaningful comment as a description.
