SSM source IP list

This table can be used to specify lists of desired or unwanted (unicast) source IPv6 addresses. These can be referenced in various places and managed globally using this table. A list is defined by several entries with the same name.

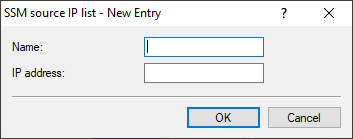

In LANconfig you configure SSM source IP list under Multicast > IGMP / MLD > Multicast Listener Discovery (MLD) via SSM source IP list.





Name
Enter a name for the entry. A list is defined by several entries with the same name.
IP address
Unicast source IPv6 address. Multicast addresses are not a valid entry at this point, since the source IPv6 addresses of a multicast entry (S, G) are defined here.
