Setup Wizard – setting up an IPv4 VPN connection over IPv6

The Setup Wizard option "Connect two local area networks" helps you to set up a VPN connection.
  1. Start LANconfig.

    LANconfig now automatically searches the local network for devices. As soon as LANconfig has completed its search, it presents a list of all the devices it found, if possible with a brief description, the IP address and the status.

  2. Choose your device from the selection window in LANconfig and select the Setup Wizard button or use the menu under Tools > Setup Wizard.

    LANconfig first reads out the device configuration and displays the selection window with the optional applications.

  3. Launch the action Connect two local area networks.
  4. Follow the Wizard’s instructions and enter the necessary data.

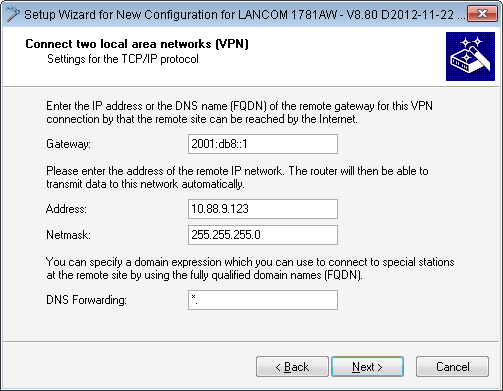

  5. As the gateway address, enter the IPv6 address of the gateway.
  6. You can then close the Wizard with Finish.

    The Setup Wizard writes the configuration to the device.
