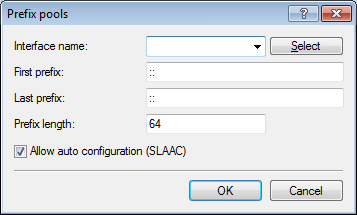

Prefix pools





This table contains the pools of prefixes which RAS users receive when they connect remotely via IPv6. The following settings are possible:

Interface name
Specifies the name of the RAS interface that is valid for this prefix pool.
First prefix
Specifies the first prefix in the pool that is assigned to remote users by the router advertisement, e.g., "2001:db8::". Each user is assigned precisely one /64 prefix from the pool.
Last prefix
Specifies the last prefix in the pool that is assigned to remote users by the router advertisement, e.g. "2001:db9:FFFF::". Each user is assigned precisely one /64 prefix from the pool.
Prefix length
Specifies the length of the prefix that the remote user is assigned by the router advertisement here. The size of the dial-in pool depends directly on the first and last prefix. Each user is assigned precisely one /64 prefix from the pool.
Important: In order for a client to be able to form an IPv6 address from the auto-configuration prefix, the prefix length must always be 64 bits.
Allow auto-configuration (SLAAC)
Specifies whether the prefix can be used for a stateless address auto-configuration (SLAAC).
