Setup Wizard – setting up IPv6 in a new device

If you have connected up a new device but not have yet configured it, you have the option of using a Setup Wizard to set up IPv4 and IPv6 connections.

To save your entries and proceed to the next screen, click Next.

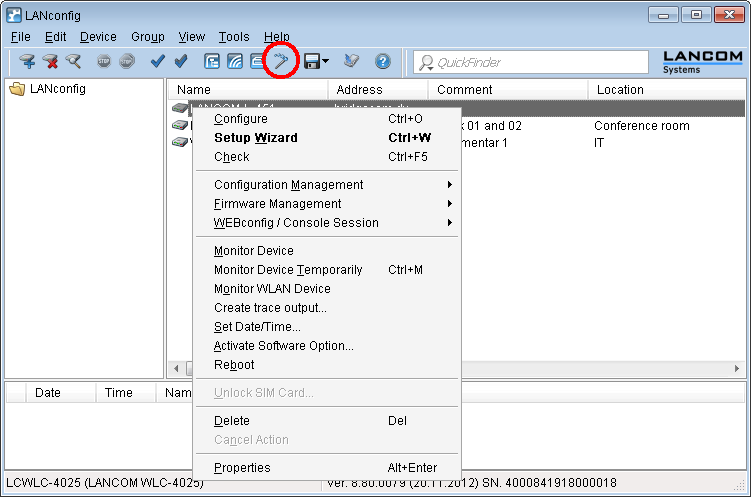

Start the Setup Wizard in LANconfig. Highlight the device to be configured. The Setup Wizard is started either by right-clicking and using the context menu, or with the Magic Wand icon in the toolbar

Note: The options displayed by the wizard depend on the options available with your device and from your Internet provider.

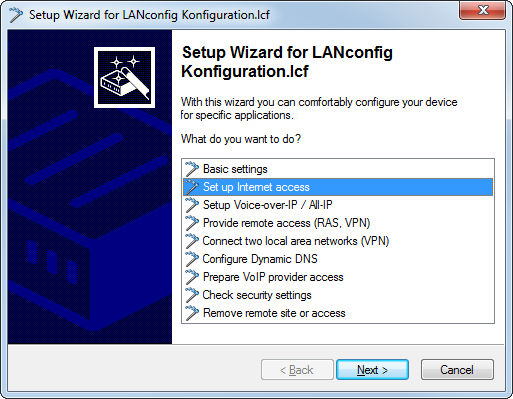

In the Setup Wizard, select the option Set up Internet access.

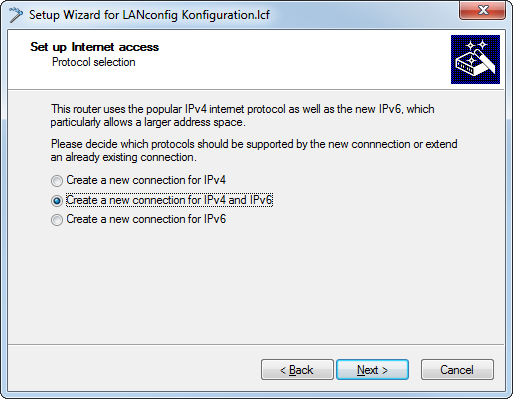

You can choose from the following options:
- Set up a connection for both IPv4 and IPv6. This is the recommended option for a new device.
- Set up an IPv4-only connection.
- Set up an IPv6-only connection.
- Supplementing an existing IPv4 connection with IPv6
In the following we take you through the setup of a dual-stack connection. Activate the appropriate selection.

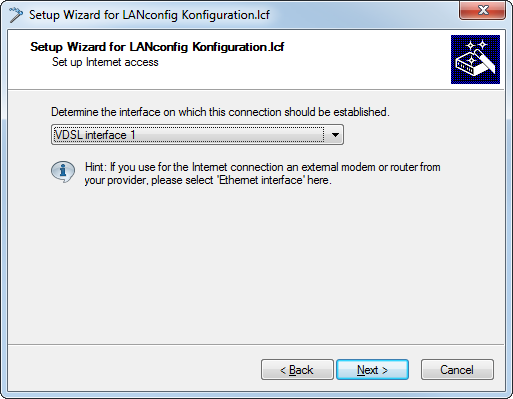

Set the interface to be used for the connection.

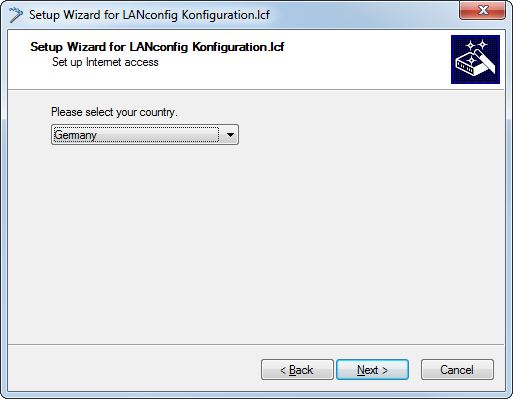

Select your country from the list.
Select your Internet provider.
You can select from the following entries:
- A selection of relevant Internet providers
- Internet connection via PPP over ATM
- Internet connection via PPP over Ethernet
- Internet access via Plain Ethernet
- Internet access via PPTP
- Internet access via DHCP
- Internet access with static IP
The type of IP access depends on your Internet provider.

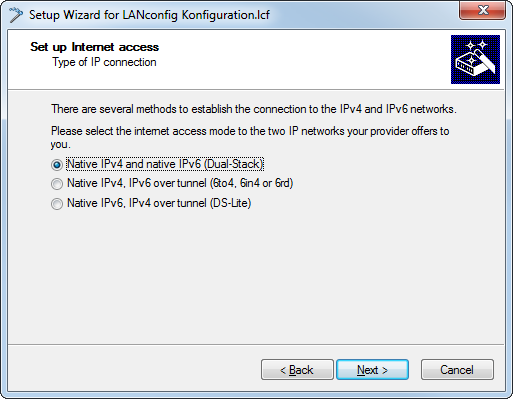

You can select from the following options:
- Native IPv4 and native IPv6 (dual-stack): Configure a direct connection without a tunnel.
- Native IPv4, IPv6 via tunnel: Start the wizard to configure a 6to4, 6in4 or 6rd tunnel.
- Native IPv6, IPv4 via tunnel (DS-Lite): Start the wizard to configure a DS-Lite tunnel.
Select the option for setting up a native IPv6 Internet connection.

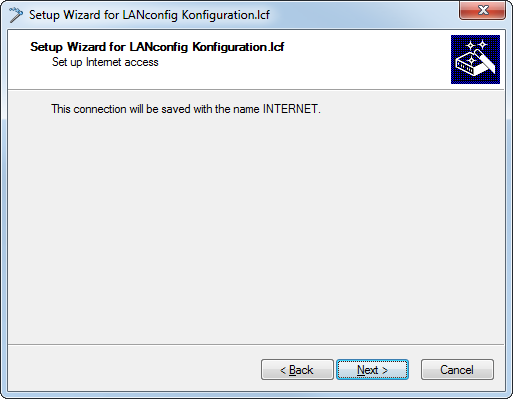

The name for this connection is "INTERNET".

Note: If a connection already exists with this name, you can specify a separate name for this connection.

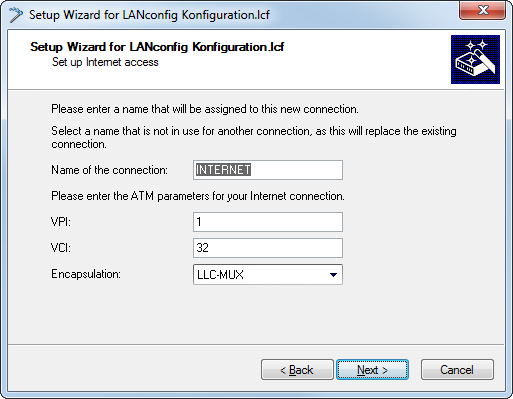

If you access the Internet with an alternative connection, e.g. over a PPPoE connection, you should additionally enter the appropriate ATM parameters.

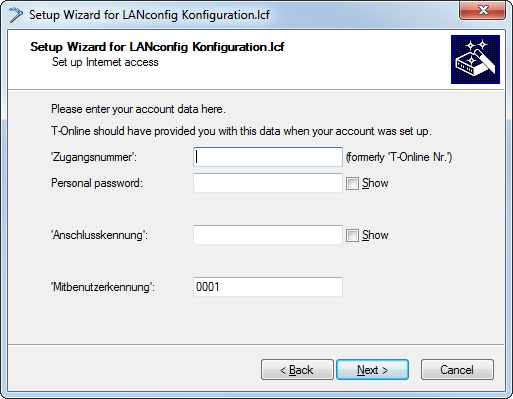

Enter the login details given to you by your provider for setting up your Internet access.

Note: Depending on the provider, the type and number of fields may vary.

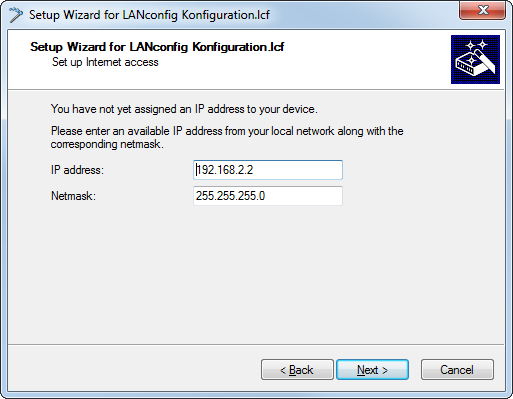

If your device does not yet have an IP address, enter a new IP address and corresponding netmask.

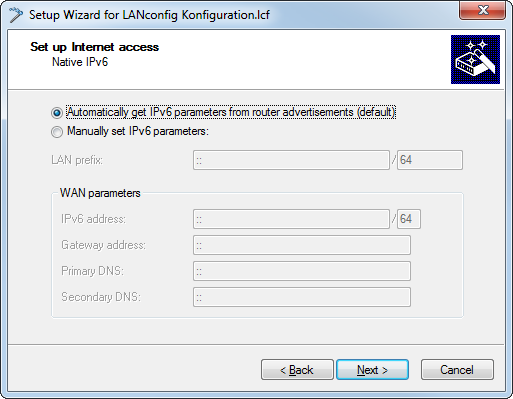

Accept the default setting of Automatically take IPv6 parameters from router advertisements.
Further options may be set up, depending on the Internet provider.
You have completed the setup of the native IPv6 Internet access. Click on Finish when you are done and the wizard will save your entries to the device.
