Setup Wizard – Setting up IPv6 on an existing device

If you have a device configured for IPv4 and you wish to set up an additional IPv6 connection, you have the option of setting up the IPv6 connections with the Setup Wizard.

To save your entries and proceed to the next screen, click Next.

  1. Start the Setup Wizard in LANconfig. Highlight the device to be configured. The Setup Wizard is started either by right-clicking and using the context menu, or with the Magic Wand icon in the toolbar
  2. In the Setup Wizard, select the option Set up Internet access. To continue, click on Next.

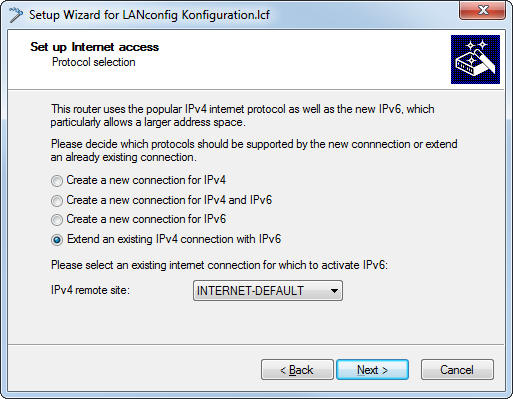

  3. Because your device is already IPv4-capable, the Setup Wizard gives you the opportunity to extend your existing settings with IPv6. Select this option and click on Next.

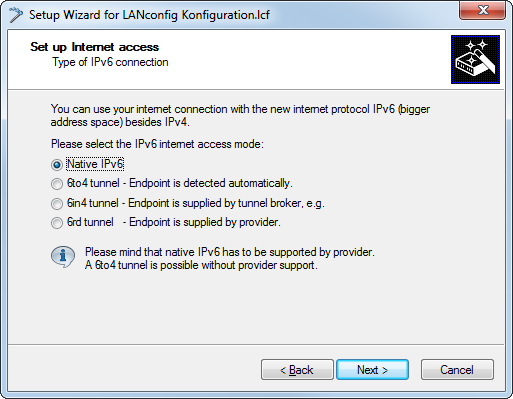

  4. Select the type of IPv6 Internet access.

    You can select from the following options:

    • Native IPv6: Configure a direct connection without a tunnel.
    • 6to4 tunnel Start the wizard to configure a 6to4 tunnel.
    • 6in4 tunnel: Use the input mask to set the parameters for the 6in4 tunnel.
    • 6rd tunnel: Use the input mask to set the parameters for the 6rd tunnel.

    Select the option for setting up a native IPv6 Internet connection.

  5. Accept the default setting of Automatically take IPv6 parameters from router advertisements.
  6. You have completed the setup of the native IPv6 Internet access. Click on Finish when you are done and the wizard will save your entries to the device.
