Policy exceptions

One option is not to apply measurement profiles to certain interfaces, for example if they are charged by data volume.

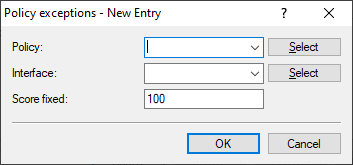

To configure the policy exceptions, navigate to the view IP Router > Routing > SD-WAN Dynamic Path Selection > Policy exceptions.





Policy
The name of an existing DPS policy from Policies.
Interface
The name of an interface (e.g. WAN remote sites, VPN tunnels) belonging to a load balancer that is rated by the policy. The measurement profiles referenced in the policy are not used to start measurements on the interface.
Important: Where an interface is used by numerous load balancers, or where multiple policies are used to rate the load balancer that uses this interface, measurements must be prevented by making an an exception for this interface in all of the affected policies.
Score fixed
Since no dynamic overall result can be derived without making measurements, this score for the interface is used for all decisions relating to dynamic path selection.
