Integration into the R&S®LMC by R&S®LMC Rollout Assistant

The Rollout Assistant is a web application. It uses a device equipped with a camera and Internet access, such as a smartphone, tablet or notebook, to read the serial number and PIN. It offers an extremely easy way to connect the device to the R&S®LMC.

Enter the URL cloud.lancom.de/rollout into a browser.

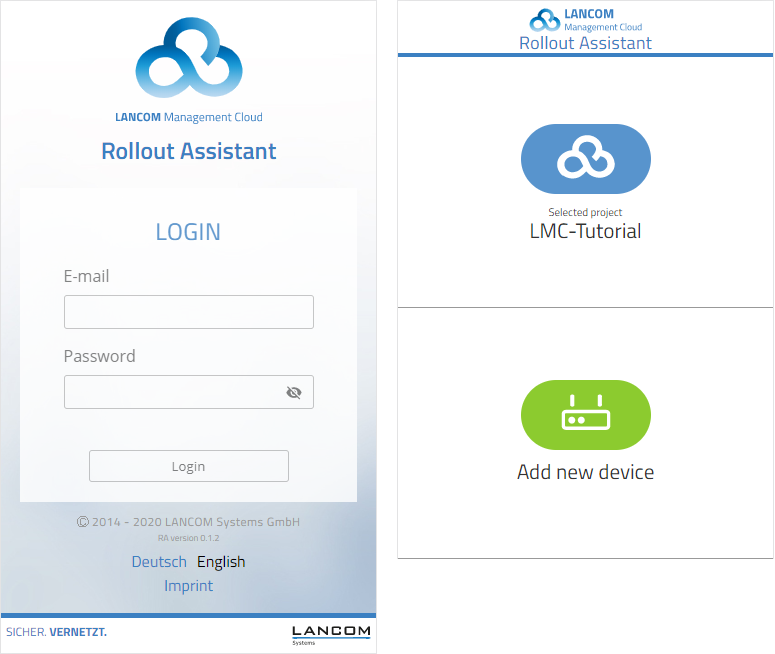

The Rollout Assistant opens with this login screen:
You select the desired language and login to the R&S®LMC using your credentials.
On the next page, you select the project that new devices are added to. Do this by tapping the green button and scanning the serial number. The Rollout Assistant may request access to the camera on the device to do this. You scan the serial number either on the underside of the device or alternatively from the barcode on the packaging box. Otherwise, you can enter the serial number manually.
Next, scan the cloud PIN from the information sheet enclosed with the device. Here, too, you have the option of entering the PIN manually. Now you can select one of the locations available in the project, or optionally use No location to leave this item open. Bear in mind that the location is an important setting for the configuration by SDN (Software-defined Networking).
In the next step, you assign various properties to the device. You give the device a name, enter an address, and take a photo of the installation. The address can be determined with the GPS information from your device.
In the final step, the information is displayed once again for checking. If you find any errors, simply go back and correct the corresponding entry.
Click or tap Add device to pair the device with the R&S®LMC. You will immediately see it in your project and can make other settings if necessary. As soon as you connect the device and it connects with the R&S®LMC, it is provisioned with an initial operating configuration based on the SDN settings, and the status changes to "online".
