General

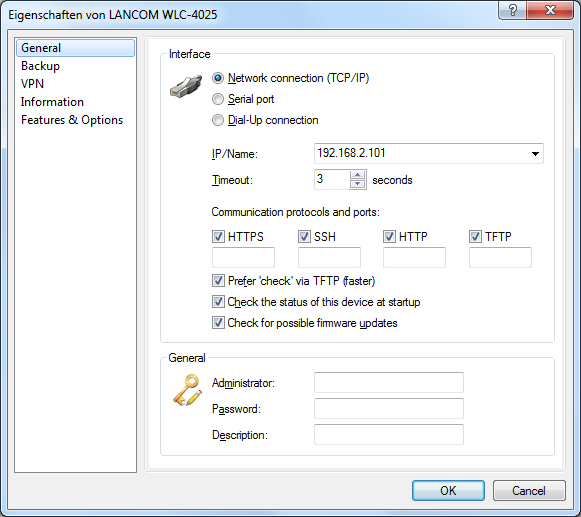

On this page, you can define how LANconfig connects to a device. It is also possible to permanently store the access credentials in the program, saving you from having to manually enter them when you connect to the device for the first time after restarting LANconfig.

Important: If you save the username and password permanently, any user who is permitted to run LANmonitor also has access to the device.




Interface
In the Interface section you can configure the connection settings for a device. Please select how the device is to be reached:
  • Network connection (TCP/IP): Select this option if the device can be reached over an IP network.
  • Serial port: Select this option if the device is connected directly via your computer's serial port.
  • Dial-up connection: Select this option if the device can be reached via Dial-Up Networking.
    Note: Please note that some devices do not support remote configuration via a dial-up connection.
  • IP/Name: Enter the IP address of the device. You can also enter a domain name (DN or FQDN) or a NetBIOS name. This name is checked at every access. LANconfig stores and uses the resolved IP address. If this check is not possible, then LANconfig takes the last IP address that was last used successfully.
  • Timeout: Here you enter how many seconds the program should wait for a response from this device.
  • HTTPS, SSH, HTTP, TFTP: When this is selected, you enable the individual protocols for the operations firmware upload, configuration up/download, and script up/download. In these operations, LANconfig attempts to use these protocols in the order HTTPS, SSH, HTTP and TFTP. If the transfer fails when using one of the selected protocols, LANconfig automatically tries the next protocol.
  • Prefer 'check' via TFTP: This option causes LANconfig to perform checks with TFTP, irrespective of other protocols that are selected. This is advantageous for devices located in the LAN. The checks are faster and place less load on the computer, which makes an appreciable difference when processing a large number of devices. The fact that HTTPS is not used should not be a problem in the LAN.
  • Check the status of this device at startup: Check this box if LANconfig should check the status of the device every time it is started.
  • Check for possible firmware updates: Select this option if LANconfig should check for possible firmware updates.
As described in the section Communication protocols and ports, LANconfig tests other protocols and executes them if TFTP is not available. Here, too, global settings take priority over the device-specific settings. After you have made the settings, the program tries to access the device and retrieve its name and version. If this fails, LANconfig shows a short error message in the Device status column.
General
In this section you can enter a description of the device.
  • Administrator: Enter the username for an administrator.
  • Password Enter the associated password here.
  • Description: Enter the description of the device that you want LANconfig to display in the main window.

Communication protocols and ports

LANconfig uses the communication protocols selected here to check the availability of the device, and to execute firmware uploads as well as the uploading and downloading of scripts/configurations.

LANconfig attempts to carry out the device actions outlined above in the order HTTPS, SSH, HTTP, and TFTP. If an action fails because of the protocol, then LANconfig repeats them with the next selected protocol.

At least one protocol must be selected in order for the action to function.

Note: When using HTTP(S) and a proxy server, it may be necessary to circumvent this proxy server so that LANconfig can reach the device. You can bypass the proxy server for local addresses by using a setting in the Window's Control Panel, Internet options. In the Internet options' advanced settings, you can also define further addresses which should not be contacted via the proxy server.

Protocols can be set globally or by means of device-specific settings. The global settings in the options menu take priority over the device-specific settings. A benefit of this is that a single global switch can be used to disable a protocol for all devices.

Tips

Potential problems when connecting with a new device

If LANconfig cannot reach a device at all, then one of the following error messages is displayed under status. To check a device again, mark it in the list and click on Device > Check in the menu bar.
