Uploading a certificate backup into the device

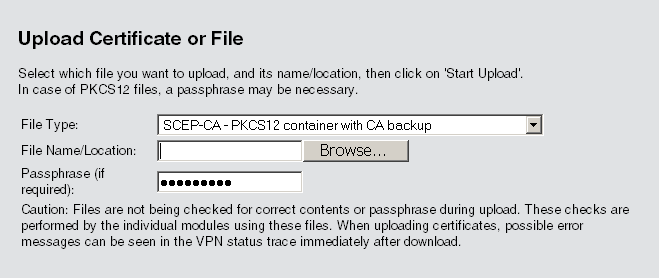

  1. Click on Extras > File management > Upload certificate or file.
  2. Select the two entries for SCEP-CA as data type one after the other:
    • PKCS12 container with CA backup
    • PKCS12 container with RA backup
  3. For each upload, enter the file name, storage location, and the passphrase that was defined when the backup file was created. Confirm with Start upload:




  4. After loading the CA backup, the file controller_rootcert in the directory Status > File-System > Contents must be deleted.
    Enter the following commands in the console:
    cd /Status/File-System/Contents
    del controller_rootcert
  5. After restoring the backup, delete all files that start with controller_ or eaptls_.
  6. After that, access the directory Setup > Certificates > SCEP-Client and execute the command Reinit:
    cd /Setup/Certificates/SCEP-Client
    do Reinit
