Printer

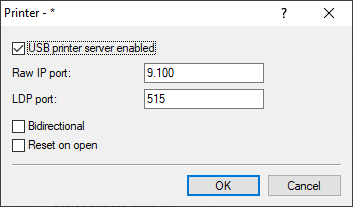

Normally there will be no need to adjust the printer settings. With the default settings, the print server works with RawIP and LPR/LPD and reacts to the standard ports as suggested by Windows when the printer connection is being configured. If printer operation does not work with these settings, the printing parameters can be adjusted. In LANconfig you configure the settings for the connected printers under Management > Advanced > Printer.

USB printer server enabled
Activate the print server here.
Raw IP port
This port can be used to accept print jobs over Raw IP.
Note: Raw IP is a standard used by Windows and is recommended for operating printers at a USB port.
LDP port
This port can be used to accept print jobs over LDP.
Important: The protocol and port options entered here must agree with the settings for the printer connection in the corresponding computer's operating system.
Bidirectional
If you activate this option, the device sends the printer status to the connected computers at regular intervals.
Reset on open
If this option is activated the device will send a reset command to the printer before opening a printer session.
Note: Activate this option if the connection to the printer does not work as expected.
