Sending and receiving direction

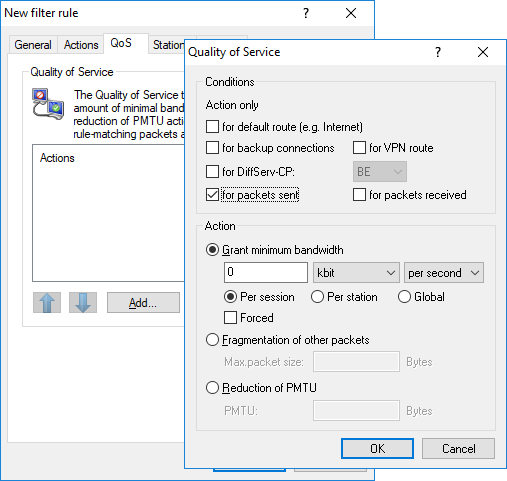

The sense of the direction of data transmission is set in LANconfig when defining the QoS rule:





When configuring a new rule in the firewall from the command line, the sense of the direction of data transmission is set using the parameter “R” for receive, “T” for transmit and “W” for reference to the WAN interface in the following location: Setup > IP-Router > Firewall > Rule-List

The following rule in the firewall restricts the data transmission with respect to the physical WAN interface to 16 Kbps in the send direction:
