Cable test

If your LAN or WAN connection cannot not transfer any data even though the configuration of the equipment appears to be correct, there may be a fault in the cabling.

The cable test allows you to test the cabling from the device. This is done in WEBconfig by navigating to Extras > LCOS menu tree > Status > LAN > Cable-Test. Enter the name of the interface that you want to test (e.g. “DSL1” or “LAN-1”). Make sure you spell the name of the interface correctly. Start the cable test for the specified interface by clicking on the Execute button.

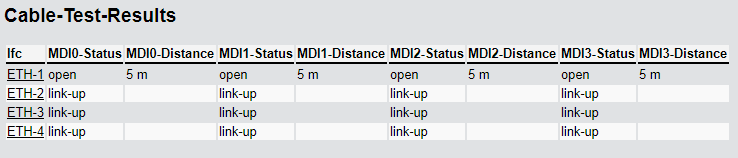

This is done by navigating to Extras > LCOS menu tree > Status > LAN > Cable-Test-Results. The list displays the results produced by the cable test for each interface.
