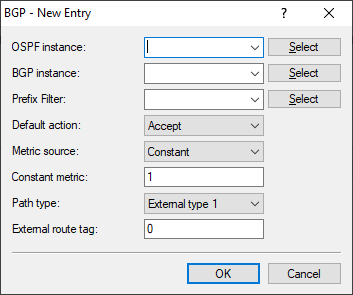

BGP

The distribution of routes learned dynamically from the Border Gateway Protocol is configured under BGP.

OSPF instance
Contains the name of the OSPF instance.
BGP instance
Contains the name of the BGP instance.
Prefix filter
Name of the prefix-filter list from Prefix lists.
Default action
Defines the default handling of prefixes that are configured in the prefix list. Possible values:
Accept
Deny
Metric source
Specifies which source is used to set the OSPF metric.Possible values:
Constant
A user-defined constant metric is used.
Protocol
The "Local preference" value of the BGP prefix is used or imported.
Constant metric
If the metric source is set to "Constant", the OSPF metric of the imported routes is set to the value Constant metric.
Path type
Specifies the type assigned to the routes imported into OSPF.Possible values:
External type 1
The OSPF metric is formed from the redistribution metric or constant metric + the total path metric used to reach this ASBR.
Note: In the OSPF routing algorithm of routers, type 1 routes are generally preferred over type 2 routes.
External type 2
The OSPF metric is formed from the redistribution metric and/or the constant metric.
External route tag
Specifies which external route tag the routes are imported with.
Note: The value is not processed by OSPF itself.
