Additional IPv6 variable for the action table

As of LCOS 10.94, an additional variable for IPv6 can be used in the action table.

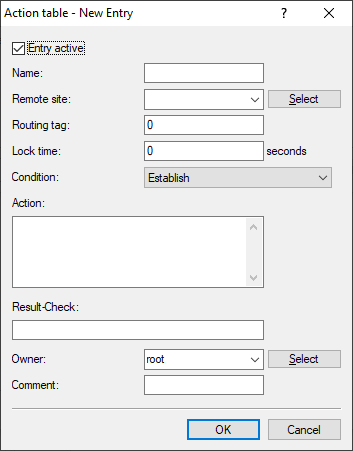

In LANconfig, you can find the action table under Communication > General > Action table.

Under Action, you can use this variable to extend the actions:

%w

Variable for IPv6. With the variable %w, together with the network name, e.g., %{wINTRANET}, a static address with a fixed host identifier can be assigned to any station in the local network.

Example: %{wINTRANET}dd06:57b3:f1ee:201e together with the prefix 2003:c9:1703:5b51::/64 on the INTRANET network results in: 2003:c9:1703:5b51:dd06:57b3:f1ee:20ff The prefix is formatted so that only the 64-bit host portion needs to be appended to form a complete 128-bit address. The prefix length "::64/" is truncated in the process.
