The status table of the DHCP server shows the following information about the devices that to which the DHCP server has assigned IP addresses:
- IP address, which the DHCP server has assigned to the network device
- MAC address of the network device
- Timeout, remaining validity period in minutes
- Computer name
- Type of address assignment, dynamic or from cache
- LAN-Ifc, logical interface over which the DHCP server assigned the IP address to the network device
- Ethernet port, physical interface over which the DHCP server assigned the IP address to the network device
- VLAN ID of the network
- Network name
- Assignment, date and time when the DHCP server assigned the IP address to the network device
You can find the status information for the DHCP server at the following locations:

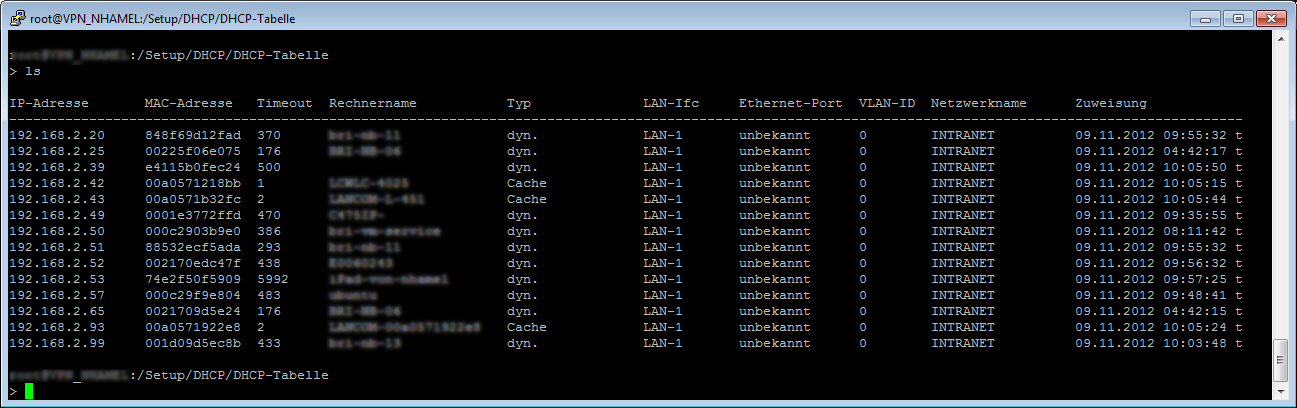

- Telnet: /Setup/DHCP/DHCP-Table

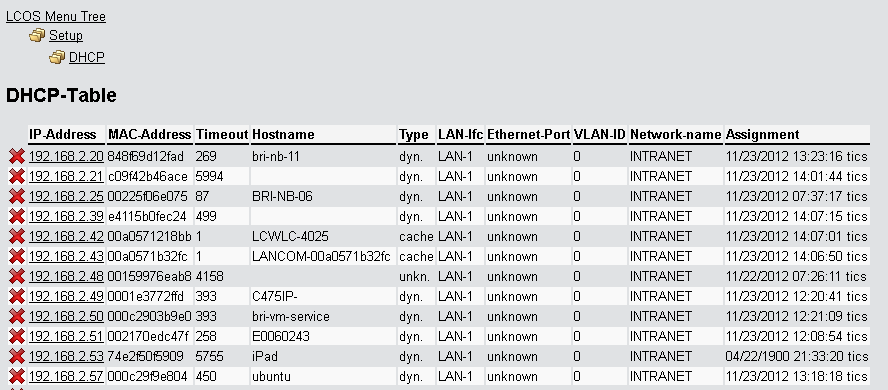

- WEBconfig: /Setup/DHCP/DHCP-Table

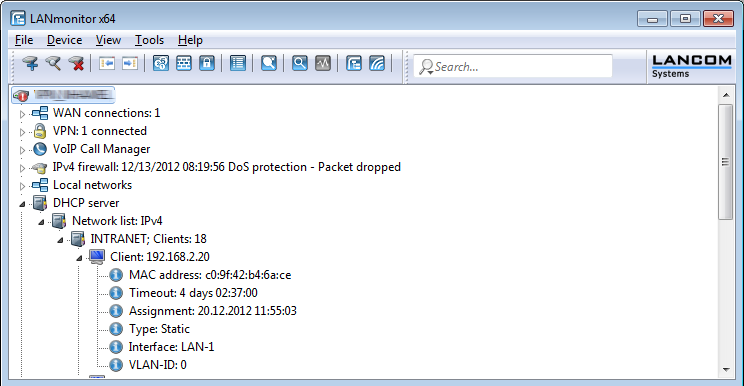

- LANmonitor: Broken down by network name under DHCP-server > Network list
