If the device is operated as a WLAN client, the device can transmit its maximum bandwidth when it registers with the access point. The access point then provides the actual maximum bandwidths with proprietary limits for this client where necessary.
Note: The significance of the Rx and Tx values depends on the device's
operating mode. In this case, as a client, Tx stands for "Send data"
and Rx stands for "Receive data".

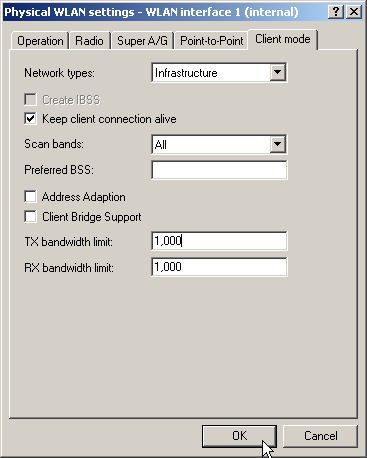

LANconfig: Interfaces / Wireless LAN / Physical WLAN Settings / Client Mode
WEBconfig: LCOS menu tree / Setup / Interfaces / WLAN/ Client modes
- Comment Comment on this entry.
- VLAN ID
VLAN-ID for the WLAN client.
- Possible values: 0 to 4094
- Special values: 0: Switches the use of VLAN off.
