Analog interfaces

The internal analog interfaces (a/b ports) require configuration if they are to be used by local users (connection of terminal equipment).

LANconfig: VoiP Call Manager / Users / Analog interfaces

WEBconfig: LCOS menu tree / Setup / Voice Call Manager / Users / Interfaces

• Interface An internal interface to which the analog subscribers are connected.
• Entry activeInterface is active / not active.
• CommentComment about analog interface

Analog users

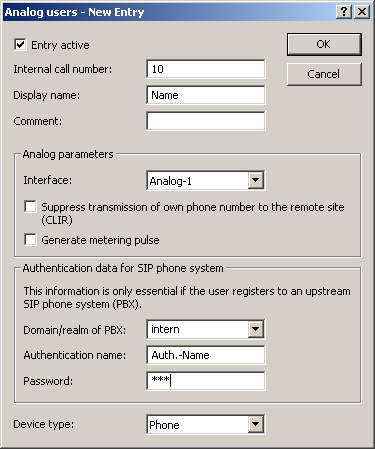

LANconfig: VoiP Call Manager / Users / Analog users

WEBconfig: LCOS menu tree / Setup / Voice Call Manager / Users / Analog users

• Number/Name Internal number of the analog telephone or name of the user (SIP URI).
• Auth-Name Name for authentication at any upstream SIP PBX when the user's domain is the same as the domain of a SIP PBX line.
• Display name Name for display on the telephone being called.
• Secret Password for authentication as a SIP user to any upstream SIP PBX when the analog user's domain is the same as the domain of a SIP PBX line. It is possible for ISDN users to log in to an upstream SIP PBX using a shared password ("Standard password" on the SIP PBX line).
• Ifc Analog interface that should be used to establish the connection.
• CLIR Switches the transmission of the calling-line identifier on/off.
• Metering pulse The metering pulse is used in analog telephone networks to inform callers of the costs of their calls. With appropriate terminal equipment (e.g. telephone with charge display), the metering pulse is filtered out from the overall signal and this information is converted to display the call charge.
  Note: This option allows the metering pulse to be passed on to the analog user/equipment. It is possible for charge information from the ISDN telephone network to be transferred to an ISDN line and converted into an analog metering pulse.
• DomainDomain of an upstream SIP PBX when the analog user is to be logged in as a SIP user. The domain must be configured for a SIP PBX line in order for upstream login to be performed.
• Device type Type of device connected.
  Note: The type determines whether an analog connection should be converted into SIP T.38, where applicable. Selecting "Fax" or "Telephone/Fax" activates fax signal recognition that could result in an impairment of the connection quality for telephones. Therefore please select the corresponding type of device connected in order to ensure optimum quality.
• Active Activates or deactivates the entry.
• Comment Comment on this entry
