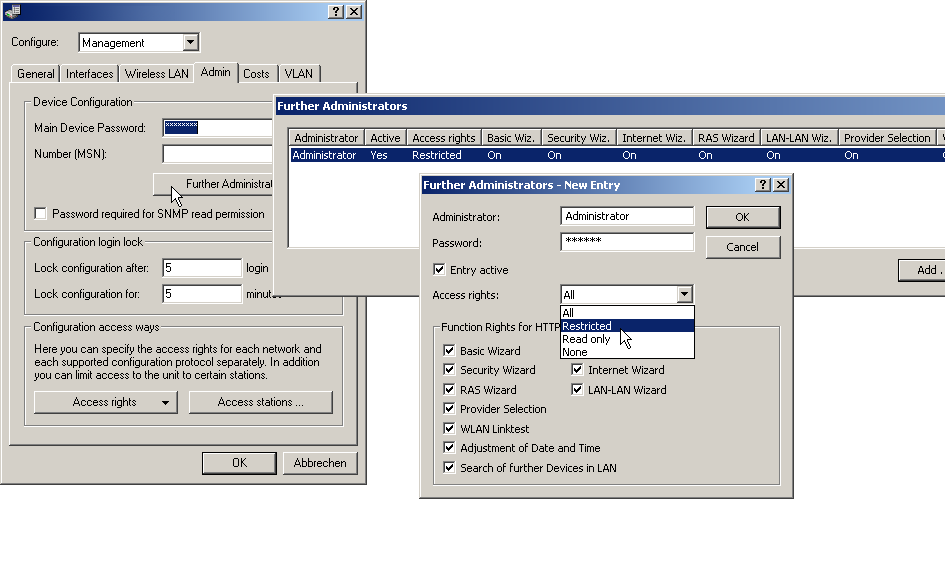

When using LANconfig for the configuration, you will find the list of administrators in the configuration area 'Management' on the 'Admin' tab under the button Further administrators.
Enter the following values:
- Name for the new administrator with password.
- Access rights
- Function rights
Under WEBconfig, Telnet or a terminal program, you will find the admin table under the following paths:
WEBconfig: LCOS menu tree / Setup / Config-module / Admin.-table
The different user groups are represented by the following values:
| Description | Rights |
|---|---|
| Supervisor | Supervisor - member of all groups |
| Admin-RW | Local administrator with read and write access |
| Admin-RW limit | Local administrator with read and write access but without trace rights |
| Admin-RO | Local administrator with read access but no write access |
| Admin-RO limit | Local administrator with read access but no write access, without trace rights |
| None | No access to the configuration |
The different function rights are represented by the following hexadecimal values:
| Value | Rights |
|---|---|
| 0x00000001 | The user can run the Basic Settings Wizard |
| 0x00000002 | The user can run the Security Wizard |
| 0x00000004 | The user can run the Internet Wizard |
| 0x00000008 | The user can run the Wizard for selecting Internet providers |
| 0x00000010 | The user can run the RAS Wizard |
| 0x00000020 | The user can run the LAN-LAN Coupling Wizard |
| 0x00000040 | The user can set the date and time (also applies for Telnet and TFTP) |
| 0x00000080 | The user can search for additional devices |
| 0x00000100 | The user can run the WLAN Link test (also applies for Telnet) |
| 0x00000200 | The user can run the a/b Wizard |
| 0x00000400 | The user can run the WTP Assignment Wizard |
| 0x00000800 | The user can run the Public Spot Wizard |
| 0x00001000 | The user can run the WLAN Wizard |
| 0x00002000 | The user can run the Rollout Wizard |
| 0x00004000 | The user can run the Dynamic DNS Wizard |
| 0x00008000 | The user can run the VoIP Call Manager Wizard |
| 0x00010000 | The user can run the WLC Profile Wizard |
The entry results from the sum of the first, second and third columns from the right. If, for example, the user is to receive rights to use the "Security Wizard", "Selection of Internet provider", "RAS Wizard", "Change time" and "WLAN Link Test", then the resulting values are as follows:
- First column from the right: 2 (Security Wizard) + 8 (Selection of Internet Provider) = "a" (hexadecimal)
- Second column from the right: 1 (RAS Wizard) + 4 (Change Time) = "5" (hexadecimal)
- Third column from the right: 1 (WLAN-Linktest) = "1" (hexadecimal)
For this example, enter the the function rights as "0000015a".
Put differently, this is an OR operator with the following hexadecimal values:
| Description | Value |
|---|---|
| Security Settings Wizard | 0x00000002 |
| Selecting the provider | 0x00000008 |
| RAS Account Wizard | 0x00000010 |
| Changing the time | 0x00000040 |
| WLAN link test | 0x00000100 |
| OR operated | 0x0000015a |
