Timeframe

Timeframes are used to define the periods when the content-filter profiles are valid. One profile may have several lines with different timeframes. Different lines in a timeframe should complement each other, i.e. if you specify WORKTIME you will probably wish to specify a timeframe called FREETIME to cover the time outside of working hours.

The timeframes “ALWAYS” and “NEVER” are predefined. You can configure other timeframes under:

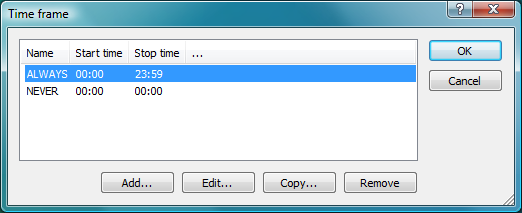

LANconfig: Date/Time / General / Timeframe

WEBconfig: LCOS menu tree / Setup / Time / Timeframe

• Name Enter the name of the timeframe for referencing from the content-filter profile. Possible values:
  • Name of a timeframe
  Default:
  • Blank
• Start Here you set the start time (time of day) when the selected profile becomes valid. Possible values:
  • Maximum 5 characters, format HH:MM
  Default:
  • 00:00
• Stop Here you set the stop time (time of day) when the selected profile ceases to be valid. Possible values:
  • Maximum 5 characters, format HH:MM
  Default:
  • 23:59
• Weekdays Here you select the weekday on which the timeframe is to be valid. Possible values:
  • Monday, Tuesday, Wednesday, Thursday, Friday, Saturday, Sunday
  Default:
  • Activated for Monday, Tuesday, Wednesday, Thursday, Friday, Saturday, Sunday

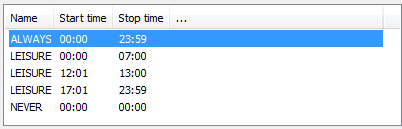

  You can form a time schedule with the same name but with different times extending over several lines:
