Configuration

The additional PPTP gateways are defined in a separate list.

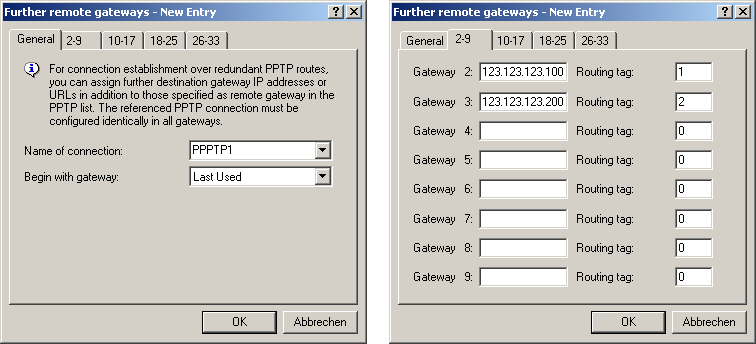

LANconfig: Communication / Protocols / Further remote gateways

WEBconfig: LCOS menu tree / Setup / WAN E Additional PPTP gateways

• Name of connection Here you select the PPTP remote site that this entry applies to. Possible values:
  • Select from the list of defined PPTP remote stations.
  Default:
  • Empty.
• Begin with Here you select the order in which the entries are to be tried. Possible values:
  • Last used: Selects the entry for the connection which was successfully used most recently.
  • First: Selects the first of the configured remote sites.
  • Random: Selects one of the configured remote sites at random. This setting provides an effective measure for load balancing between the gateways at the headquarters.
  Default:
  • Last used
• Gateway 2 to 33 Enter the IP addresses of the additional gateways to be used for this PPTP remote station. Possible values:
  • IP address or 63 alphanumerical characters.
  Default:
  • Empty.
• Routing tag Enter the routing tag for setting the route to the relevant remote gateway. Possible values:
  • Maximum 5 characters.
  Default:
  • 0.
  Note: If you do not specify a routing tag here (i.e. routing tag is 0), then the routing tag configured for this remote station in the PPTP connection list will be taken for the associated gateway.
