Port settings

This table defines the port-related settings for IGMP snooping.

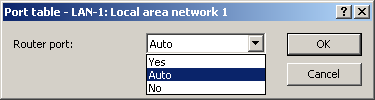

LANconfig: Interfaces / IGMP snooping / Port table

WEBconfig: LCOS menu tree / Setup / LAN bridge / IGMP snooping / Port settings

• Port The port for which the settings apply. Possible values:
  • Selects a port from the list of those available in the device.
  Default:
  • N/A
• Router port This option defines the port's behavior. Possible values:
  • Yes: This port will always work as a router port, irrespective of IGMP queries or router messages received at this port.
  • No: This port will never work as a router port, irrespective of IGMP queries or router messages received at this port.
  • Auto: This port will work as a router port if IGMP queries or router messages are received. The port loses this status if no packets are received for the duration of "Robustness*Query-Interval+(Query-Response-Interval/2)".
  Default:
  • Auto
