Syslog

For diagnostic purposes, the syslog of a LCOS LX-based device can be sent to an external syslog server.

The settings for this can be found under Management > Extended > Syslog.

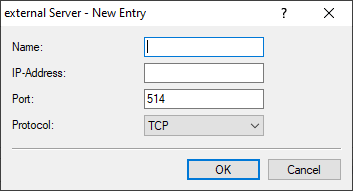

Configure one or more syslog servers in the External Server table. Messages can be sent via TCP or UDP.

Important: Note that syslog messages are unencrypted and may contain sensitive information about your network. For this reason they should only be transmitted for diagnostic purposes over a secure network.




Name
Name of the external syslog server.
IP address
IP address of the external syslog server.
Port
Port of the external syslog server.
Protocol
Protocol (TCP/UDP) used to communicate with the external syslog server.
