Static parameters

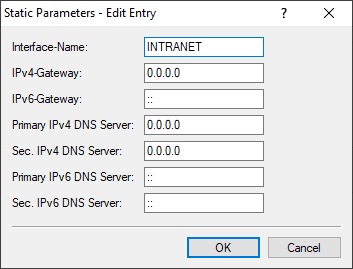

Other settings related to the IP and network configuration that are required when using static IP addresses are located under IP Configuration > Configuration > Static parameters.





Important: The settings made in this table only come into effect if the IPv4 or IPv6 address source for the corresponding LAN interface is set to static. Otherwise all of the necessary information is retrieved via DHCP, for example, in which case no configuration is required here.
Interface name
Enter the name of the interface, which the other settings made here refer to.
IPv4-Gateway
Here you configure the IPv4 gateway for the referenced interface.
IPv6-Gateway
Here you configure the IPv6 gateway for the referenced interface.
Primary IPv4 DNS server
Here you configure the primary IPv4 DNS gateway for the referenced interface.
Secondary IPv4 DNS server
Here you configure the secondary IPv4 DNS gateway for the referenced interface.
Primary IPv6 DNS server
Here you configure the primary IPv6 DNS gateway for the referenced interface.
Secondary IPv6 DNS server
Here you configure the secondary IPv6 DNS gateway for the referenced interface.
