The access point can add the Circuit ID and/or Remote ID to relayed DHCP packets. The DHCP server can make decisions based on this information, such as assigning specific IP addresses.

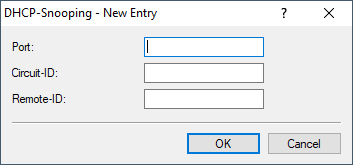

LANconfig:
- Port
- Here you can configure the WLAN network name or a LAN port (depending on the device model ETHx or LANx) on which DHCP requests should be supplemented.
- Circuit-ID
-
The Circuit ID can be configured here using these placeholders:
- %i: Inserts the name of the interface where the relay agent received the DHCP request.
- %n: Inserts the name of the DHCP relay agent as specified under .
- %s: Inserts the WLAN SSID if the DHCP packet originates from a WLAN client. For other clients, this variable contains an empty string.
- %r: Inserts the system-wide MAC address.
- %%: Inserts a percent sign.
- Remote-ID
-
Here you can configure the Remote ID using these placeholders:
- %i: Inserts the name of the interface through which the relay agent received the DHCP request.
- %n: Inserts the name of the DHCP relay agent as specified under .
- %s: Inserts the WLAN SSID if the DHCP packet originates from a WLAN client. For other clients, this variable contains an empty string.
- %r: Inserts the system-wide MAC address.
- %%: Inserts a percent sign.
