Changes in BGP settings

As of LCOS FX 11.2, the option R. Table (Destination routing table) was added to the individual neighbors in the BGP settings.

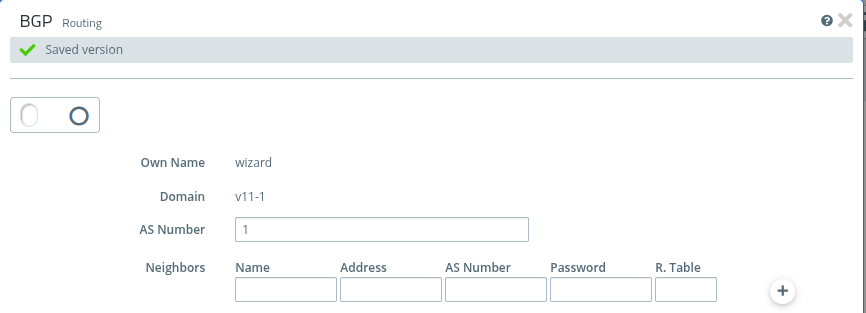

Figure 1. Network > Routing > BGP



Input field Description
R. Table Specify the optional destination routing table for the BGP peer. If set to 0 or left empty, the globally configured destination routing table will be used. Other valid values are 254 or the range from 512 to 65535.
