Setting up a CA and creating and using certificates for a VPN connection with certificate rollout via SCEP

This tutorial describes how you enable a CA (certificate authority) on a LANCOM router and how the CA helps you to create and use new certificates for a VPN connection between two LANCOM routers (certificate distribution via SCEP).

Note: We only explain the menu items that are important for the successful conclusion of the tutorial.

Important: All devices must be set with the correct date and time and the certificate authority must be accessible via "HTTPS".

You enable the certificate authority in WEBconfig or LANconfig and you set the device as the root CA. You will find these settings under Certificates > Cert. authority (CA).
SCEP clients can automatically obtain certificates by SCEP (simple certificate enrollment protocol). A necessary step for this is for you to set a general challenge password in the root CA. Set a password at Certificates > Certificate handling.

Note: If you write the configuration back to the device after enabling the CA, the CA automatically generates a general challenge password.

You are now able to create CA certificates for the VPN endpoints that will later provide the connection.

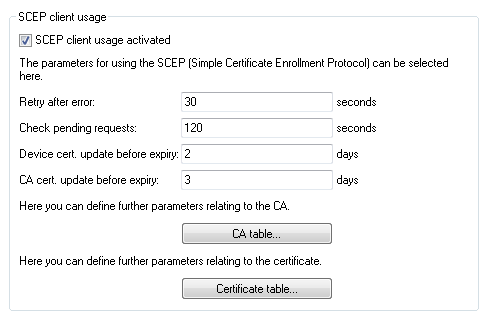

In order for the VPN endpoints to obtain their certificates via SCEP, the SCEP client must be configured on each of them. This setting is located under Certificates > SCEP client.

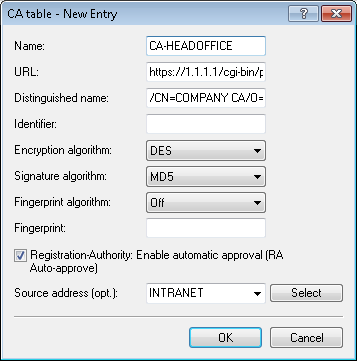

1. Specify the further information about the certificate authority under Certificates > SCEP client > CA table. This table contains information about the CA from which a certificate is to be obtained.

  Name

  The name can be freely selected and used to identify this device.

  URL

  The URL is always constructed in the same way: https://<IP address>/cgi-bin/pkiclient.exe. Replace <IP address> with the IPv4 address where the CA is accessible from the WAN.

  Important: If the VPN endpoint is also the CA, you need to enter the loopback address here.

  Distinguished name

  The distinguished name of the CA (see screenshot in step 1).

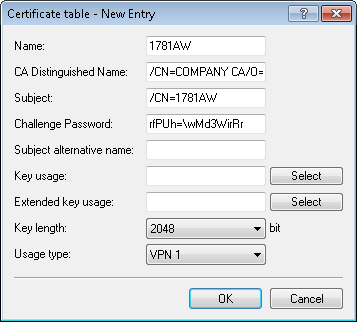

2. The additional information about the certificate that the CA is to issue to this device is specified under Certificates > SCEP client > Certificate table.

  Name

  The name can be freely selected and used to identify this device.

  CA Distinguished Name

  The CA distinguished name (see screenshot in step 1).

  Subject

  The desired distinguished name of the certificate. In this example, only the common name is used.

  Challenge password

  The general challenge password set on the certificate authority (see step 2).

  Usage type

  The location where this certificate is to be stored. In this example "VPN 1".
Once you have set up a SCEP client on each of the VPN endpoints, you can establish a VPN connection between two VPN endpoints. This is carried out via the Setup Wizard Connect two local area networks (VPN).
1. In the Setup Wizard, set the VPN connection authentication to Certificates (RSA signature).

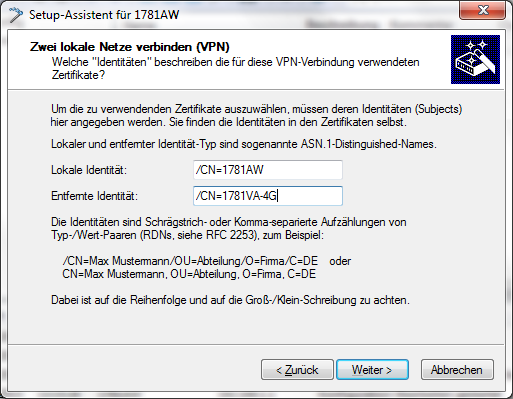

2. In the Local and remote identity window, specify the "ASN.1-Distinguished-Name". This is the official name of the certificate plus any additional information that you entered under "Subject" in step 3.b. For the Local identity, enter the information for the certificate on the local machine. The item Remote identity contains the certificate information of the other VPN endpoint.
3. Continue to run the Wizard. You repeat this process for the other VPN endpoint of this VPN connection.
