Route redistribution of LISP routes in BGP

As of LCOS version 10.20, route redistribution allows LISP routes be redistributed according to BGP. For this purpose, routes of the corresponding type are read out from the routing table and redistributed by BGP.

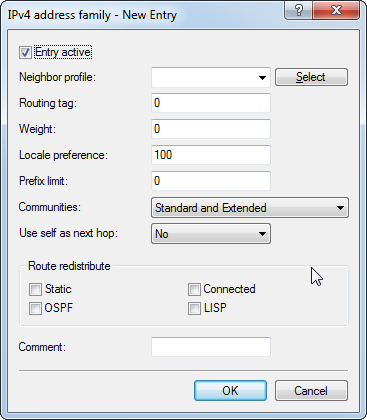

There are two new switches for this feature. In LANconfig, these are located under Routing protocols > BGP > IPv4 address family

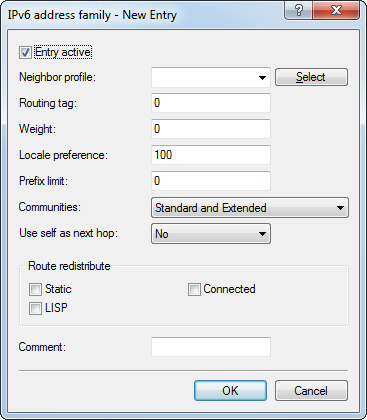

and Routing protocols > BGP > IPv6 address family, respectively.




If the LISP option is selected, the device distributes LISP routes from the routing table to the BGP neighbors.
