If registration with a shared password is not desired, then an individual password can be used for each SIP user. In this case, each SIP user is configured with its own password in the LANCOM
- Public PBX number: Here, enter the number at which the SIP PBX is to be be reached over the public telephone network from the location of the LANCOM. The number is entered with the necessary prefixes, but without an extension number. For example, if the SIP PBX is located in London and the LANCOM is in Birmingham, then the public PBX number is '020 12345'.

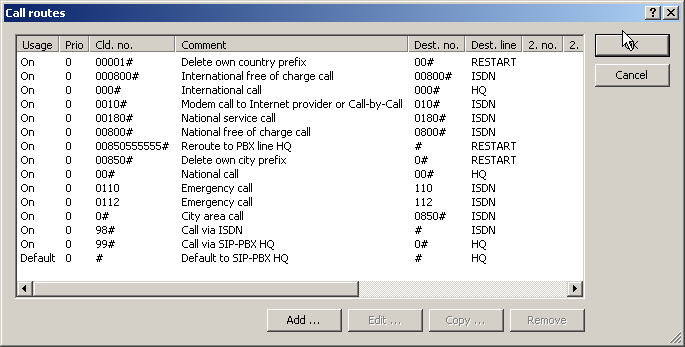

- The call routing table suggested by the setup wizard automatically allows international
and national long distance calls to be made via the SIP PBX at the headquarters.
- In addition, a standard route is used in order to conduct calls from the LANCOM VoIP range to internal SIP PBX numbers via the corresponding SIP PBX lines.
Note: This special entry is only used during the second pass in the call routing table, after the first pass found no corresponding entry for "normal" routes and if no matching internal number was found in the list of local users.
