ISDN users

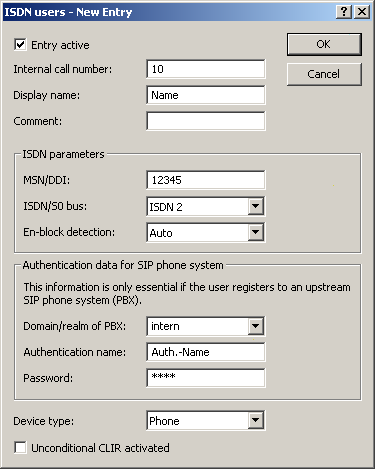

LANconfig: VoiP Call Manager / Users / ISDN users

WEBconfig: LCOS menu tree / Setup / Voice Call Manager / Users / ISDN users

• Number/Name Internal number of the ISDN telephone or name of the user (SIP URI).
  Note: By using the # character as a placeholder, entire groups of numbers (e.g. when using extension numbers at a point-to-point connection) can be addressed via a single entry. With the number '#' and the DDI '#', for example, extension numbers can be converted into internal telephone numbers without making any changes. With the call number '3#' and the DDI '#', for example, an incoming call for extension '55' is forwarded to the internal number '355', and for outgoing calls from the internal number '377', the extension number '77' will be used.
  Note: User entries that use # characters to map user groups cannot be used for registration at an upstream PBX. This registration always demands a specific entry for the individual ISDN user.
• Ifc ISDN interface that should be used to establish the connection.
• MSN/DDIInternal MSN that is used for this user on the internal ISDN bus.
  • MSN: Number of the telephone connection if it is a point-to-multipoint connection.
  • DDI (Direct Dialing in): Telephone extension number if the connection is configured as a point-to-point line.
  Note: By using the # character as a placeholder, entire groups of call numbers, e.g. when using extension numbers, can be addressed via a single entry.
  Note: User entries that use # characters to map user groups cannot be used for registration at an upstream PBX. This registration always demands a specific entry for the individual ISDN user.
• Auth-Name Name for authentication at any upstream SIP PBX when the user's domain is the same as the domain of a SIP PBX line.
• Display name Name for display on the telephone being called.
• Secret Password for authentication as a SIP user at any upstream SIP PBX when the user's domain is the same as the domain of a SIP PBX line. It is possible for ISDN users to log in to an upstream SIP PBX using a shared password ("Standard password" on the SIP PBX line).
• DomainDomain of an upstream SIP PBX when the ISDN user is to be logged in as a SIP user. The domain must be configured for a SIP PBX line in order for upstream login to be performed.
• Device type Type of device connected.
• DialCompl En-block dial detection.
• CLIR Switches the transmission of the calling-line identifier on/off.
• Active Activates or deactivates the entry.
• Comment Comment on this entry.
