For configuration with WEBconfig or Telnet, the interpretation of the data transfer direction is specified in a new Firewall rule by parameters “R” for receive, “T” for transmit (send) and “W” for reference to the WAN interface:

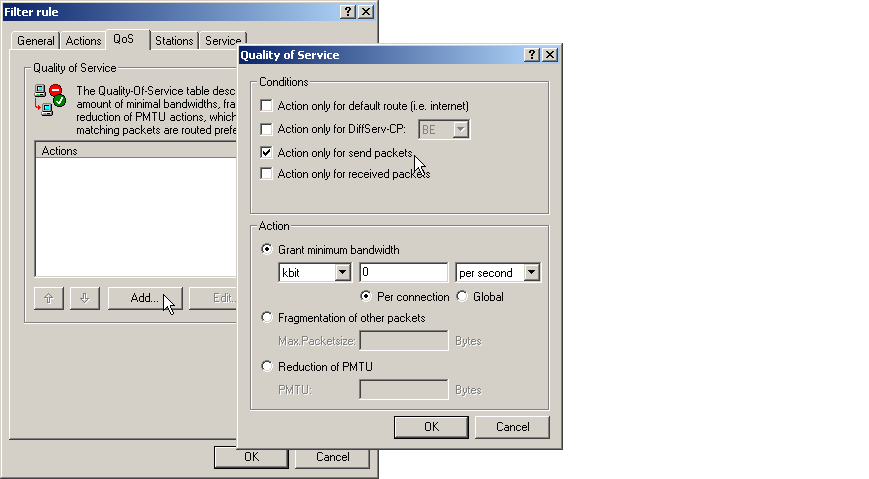

LANconfig: Firewall/QoS / Rules / Filter rules / Quality of Service
WEBconfig: Setup / IP router / Firewall / Rule list
A restriction of data transfer to 16 Kbps in sending direction applying to the physical WAN interface is e.g. made by the following Firewall rule:
- %Lcdstw16%d
