Configuring data volume budgets

The following section describes how you can use LANconfig to manage the data volumes exchanged with remote stations.

Start LANconfig with Start > Programs > LANCOM > LANconfig and open the configuration of the device for which you want capture the data volumes.
For information on configuring devices with LANconfig refer to the LCMS section of the Reference Manual.

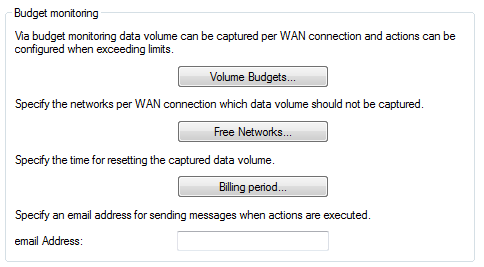

In the configuration dialog, navigate to the item Management > Budget.

If the device should send an e-mail when your data volume is exceeded, you can enter the required address into the field E-mail address.

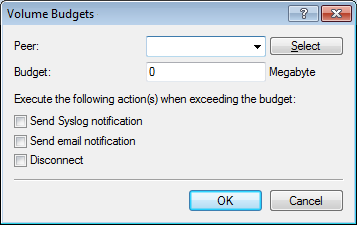

Click on Volume budgets and then on Add.
The item Peer lets you select the remote station which requires a volume budget. With Select you can choose from the available remote stations or manage new ones.

Specify the data volume in the Budget field. In most cases this value is the permitted data volume specified by the provider before the data rate is throttled.
Further, you can specify actions that the device should perform when the budget is reached:
- Send SYSLOG notification: The device stores a SYSLOG message (with the flag "Critical") that you can analyze with LANmonitor or a special SYSLOG client.
- Send e-mail notification: The device sends a message to the e-mail address that you specified above.
- Disconnect: The device disconnects from the remote station.
  Note: The disconnect action activates the charge limiter. The device can no longer connect to this remote until the end of the month unless you increase the volume budget for this remote site.
You can also specify that the device should perform multiple actions. If they include the action disconnect, the device performs this action as the last one.
Click OK to add this entry to the table, and then click OK to add the entries to the configuration of the device.

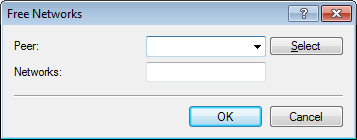

If data transfer to certain networks does not affect the volume budget for a remote site, you can exclude these networks from the budgeting. To do this, click on Free networks and then on Add.

The item Peer lets you select the remote station which is to be excluded. With Select you can choose from the available remote stations or manage new ones.

Note: You can make multiple entries for each remote by suffixing the name of the remote station with the # character and adding a number (e.g. "INTERNET", "INTERNET#1", "INTERNET#2", etc.). This is useful if you explicitly wish to define an exception that is only temporarily active. When this exception is no longer valid, you delete only the entry with the correspondingly numbered remote station.

In the Networks field you can specify IPv4 and IPv6 addresses and also whole networks in prefix notation (for example "192.168.1.0/24"). Separate each entry with a comma. Here too you can add the # character and a digit to the remote station name.
Click OK to add this entry to the table, and then click OK to add the entries to the configuration of the device.

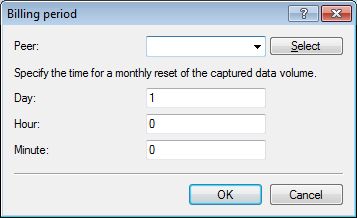

You can set the day and time when the device should start each monthly billing period under Billing period.
If you want to change the preset values, select the line containing the peer named "*" and click on Edit; otherwise click on Add.

The item Peer lets you select the remote station for which you want to set the time when the period starts. With Select you can choose from the available remote stations or manage new ones.

Note: You can use wildcards for the names of the remote stations. The wild card "*" in this case applies for all remote stations.

In the fields Day, Hour and Minute you set the day of the month and the time at which the device resets the budget for this peer.

Note: By default the device resets the budget for all peers on the first day of the month at 00:00h.

Note: If you enter the value "31" in the field Day, the device does not reset the budget in months with fewer days (e.g. February or November).
Click OK to add this entry to the table, and then click OK to add the entries to the configuration of the device.
Finally click on OK to load the configuration into the device.
