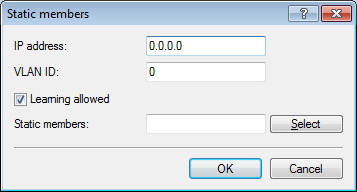

This table enables members to be defined manually, for example if they cannot or should not be learned automatically.
- IP address
- The IP address of the manually defined multicast group.
Possible values:
- Valid IP multicast address.
- 0.0.0.0
- VLAN-ID
- The VLAN ID to which the bridge applies this static membership. You can enter multiple entries with different VLAN IDs for each IP multicast address.
Possible values:
- 0 to 4096.
- 0
- If "0" is selected as VLAN, the IGMP queries are sent without a VLAN tag. For this reason, this value only makes sense when VLAN is deactivated in general.
- Learning allowed
- This option activates the automatic learning of memberships in this multicast group. If automatic learning is deactivated, the bridge only sends packets via the ports which have been manually defined for the multicast group.
Possible values:
- Activated
- Deactivated
- Activated
- Static members
- The bridge will always send packets with the corresponding IP multicast address to these ports, irrespective of any Join messages received.
Possible values:
- Comma-separated list of the desired ports, max. 215 alphanumerical characters.
- Blank
