Static members

This table enables members to be defined manually, for example if they cannot or should not be learned automatically.

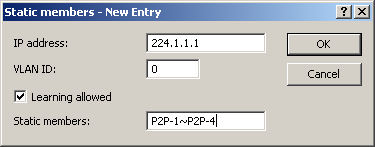

LANconfig: Interfaces / IGMP snooping / Static members

WEBconfig: LCOS menu tree / Setup / LAN bridge / IGMP snooping / Static members

• Address The IP address of the manually defined multicast group. Possible values:
  • Valid IP multicast address.
  Default:
  • Blank
• VLAN ID The VLAN ID which is to support this static member. Each IP multicast address can have multiple entries with different VLAN IDs. Possible values:
  • 0 to 4096.
  Default:
  • 0
  Special values:
  • If "0" is selected as VLAN, the IGMP queries are sent without a VLAN tag. For this reason, this value only makes sense when VLAN is deactivated in general.
• Allow learning This option activates the automatic learning of memberships in this multicast group. If automatic learning is deactivated, packets can only be sent via the ports which have been manually defined for the multicast group. Possible values:
  • Yes, No.
  Default:
  • Yes
• Static members These ports will always be the destination for packets with the corresponding IP multicast address, irrespective of any Join messages received. Possible values:
  • Comma-separated list of the desired ports, max. 215 alphanumerical characters.
  Default:
  • Blank
